• Wheels, 18" (45.7 cm) chromed aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Wheel, 18" x 8" (45.7 cm x 20.3 cm) full-size, steel spare. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered. (Requires 18" wheels and tires and single rear wheels. Included with (E63) Pickup Box. Available to order when (ZW9) pick-up box delete is ordered.)
• Wheelhouse liners, rear (Requires Crew Cab or Double Cab model. Not available with dual rear wheels. Deleted with (ZW9) pickup box delete.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Bumper, front chrome
• Bumper, rear chrome with bumper CornerSteps
• CornerStep, rear bumper
• Moldings, bodyside, chrome
• Grille surround, chrome
• Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• LED Lighting, cargo box with switch on center switch bank (Deleted when (ZW9) pickup box delete is ordered.)
• Mirrors, outside heated power-adjustable vertical trailering, memory-equipped, upper glass, power-folding and manual extending, chrome; includes integrated turn signal indicators, consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Glass, deep-tinted
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Remote Locking Tailgate
• Cargo ties downs (4), movable upper (Deleted when (ZW9) pickup box delete is ordered.)

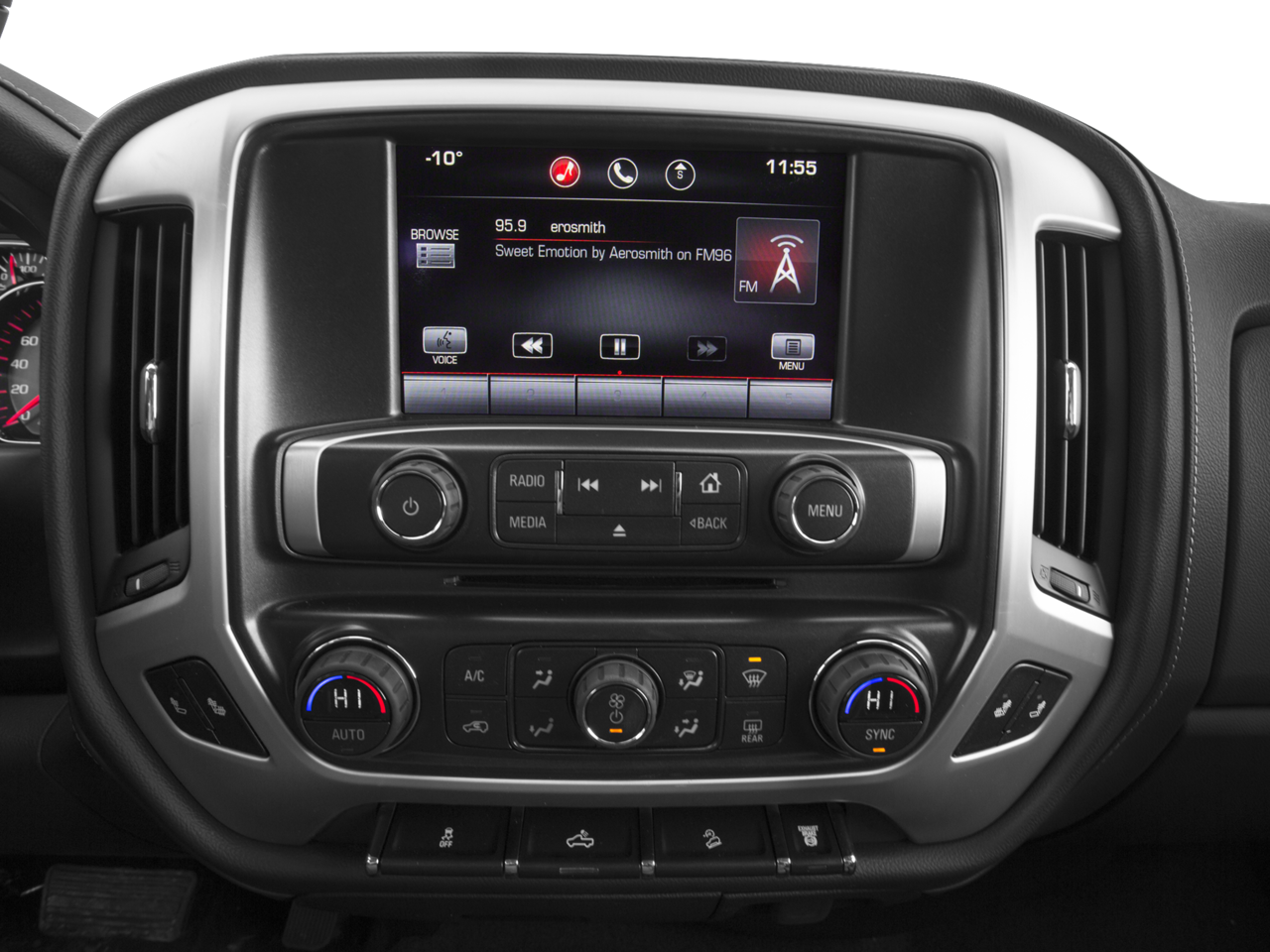

• Audio system, 8" Diagonal Color Touch Screen with IntelliLink, AM/FM/SiriusXM, HD Radio with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, Pandora Internet radio and voice-activated technology for radio and phone (Upgradeable to (IO6) 8" Diagonal Color Touch Screen Navigation with IntelliLink.)
• Single-slot CD/MP3 player (On Crew Cab replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio is standard on most 2016 GM models. Enjoy a 3-month XM Select+ trial with 130 channels including commercial-free music, plus news, talk, sports and comedy. Every trial comes with free online listening, which lets you take all your favorite programming anywhere. Listen on your computer, smartphone or tablet to find your sound. (The use of the SiriusXM Canada radio service constitutes acceptance of our Customer Agreement available at siriusxm.ca/terms and are used under license. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-877-209-0079. All fees and programming subject to change.)
• Radio, HD
• 6-speaker audio system
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

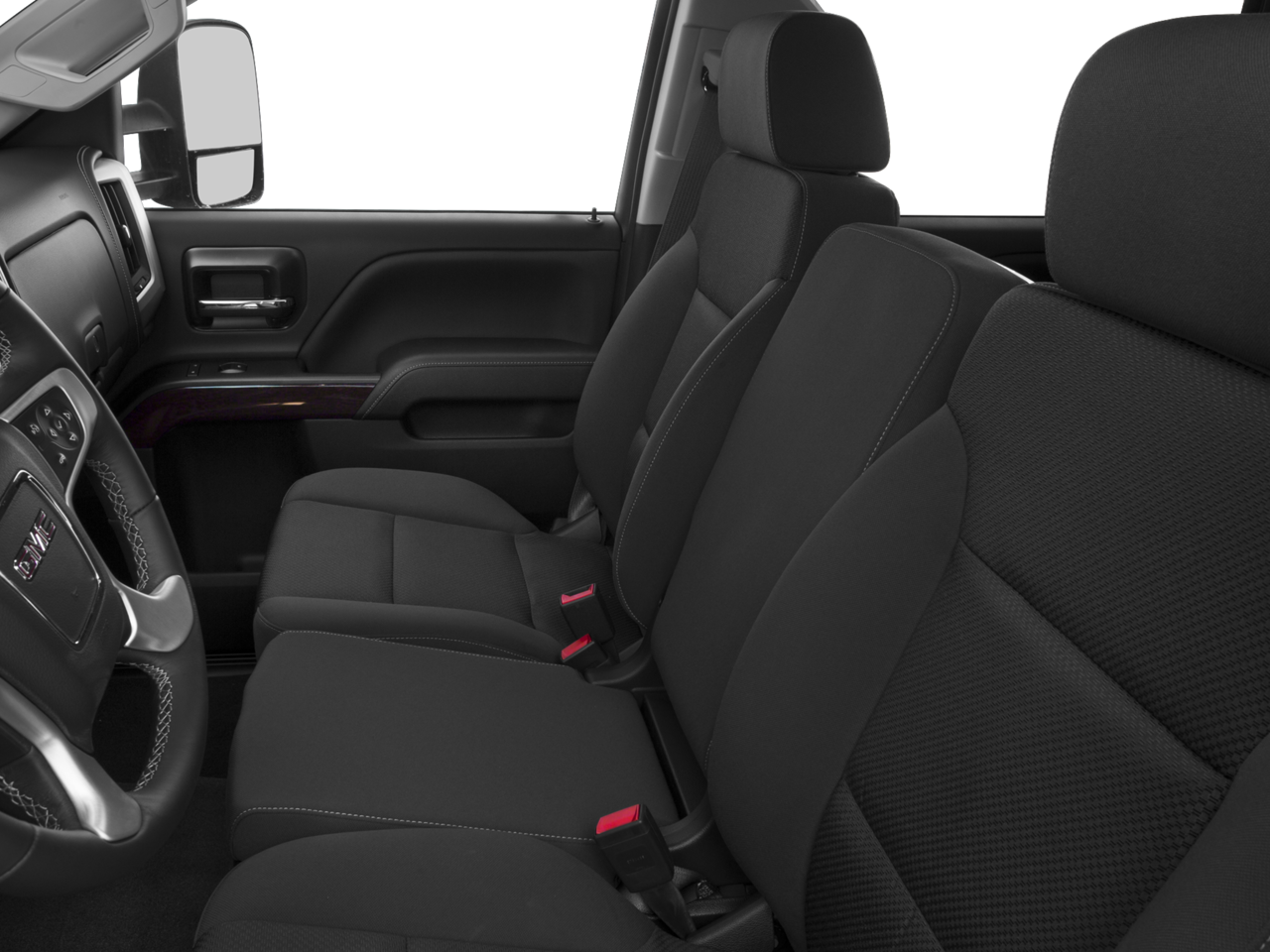

• Seats, front 40/20/40 leather-appointed split-bench, 3-passenger with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including driver/front passenger power recline, driver/front passenger power lumbar, 2- position driver memory and adjustable outboard head restraints. (Upgradeable to (AN3) front full-feature leather-appointed bucket seats.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• Seat trim, Leather-appointed front seats
• Seating, heated driver and front passenger Only available on Crew Cab and Double Cab models.

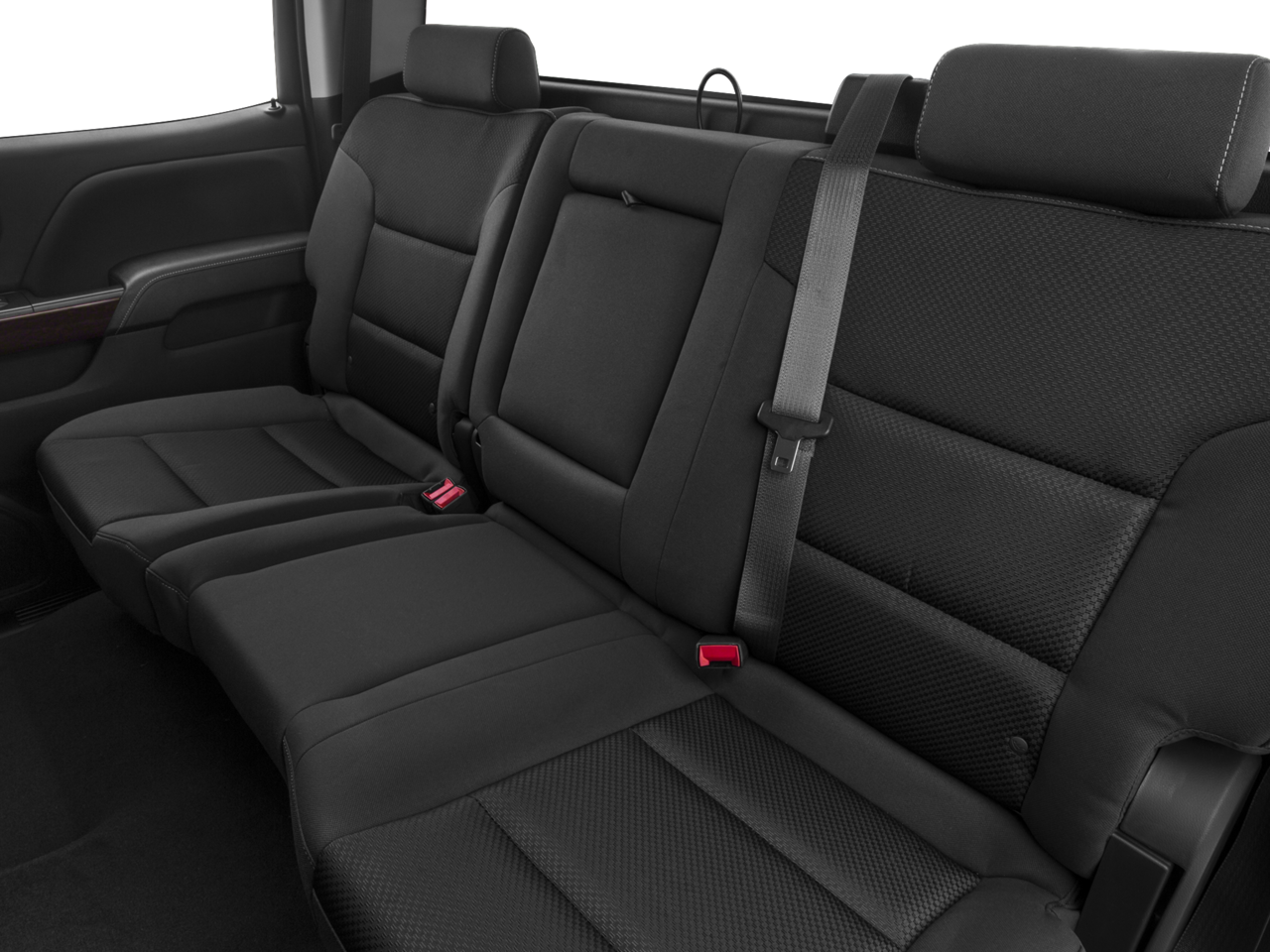

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Steering column, manual Tilt-Wheel and telescoping

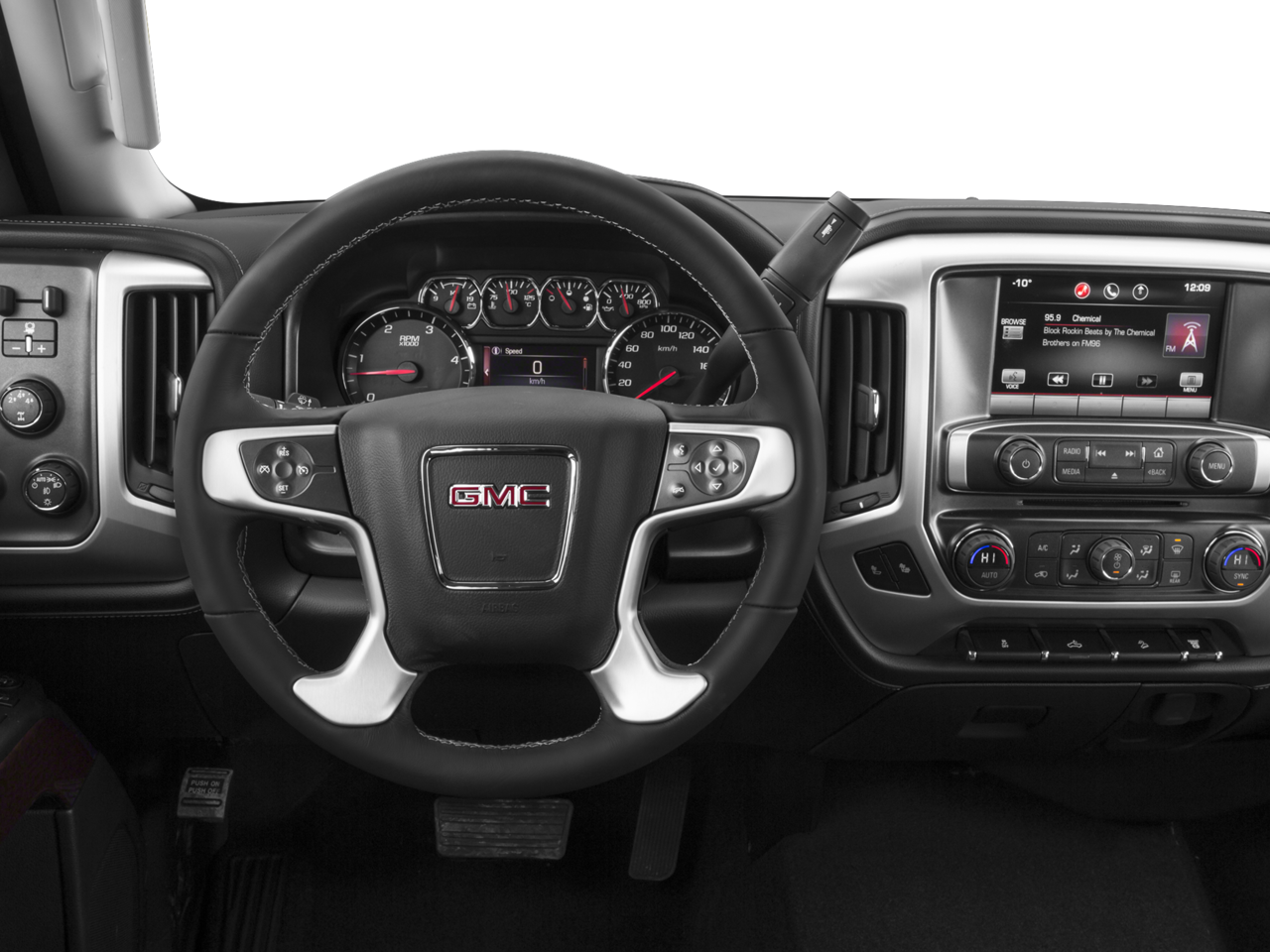

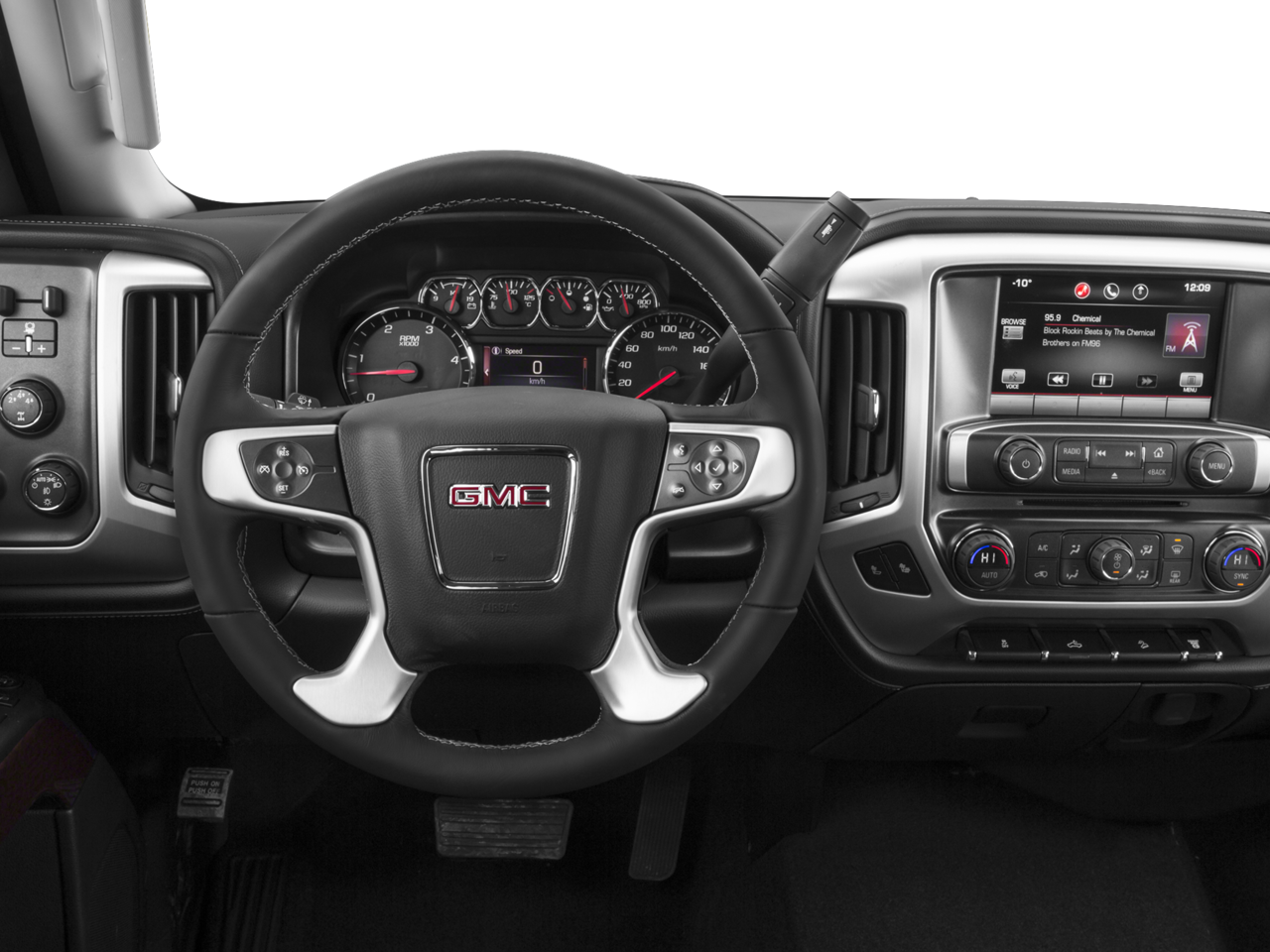

• Steering wheel, leather-wrapped with audio and cruise controls
• Steering wheel audio controls
• Driver Information Center 4.2-inch diagonal color display, includes driver personalization, warning messages and vehicle information

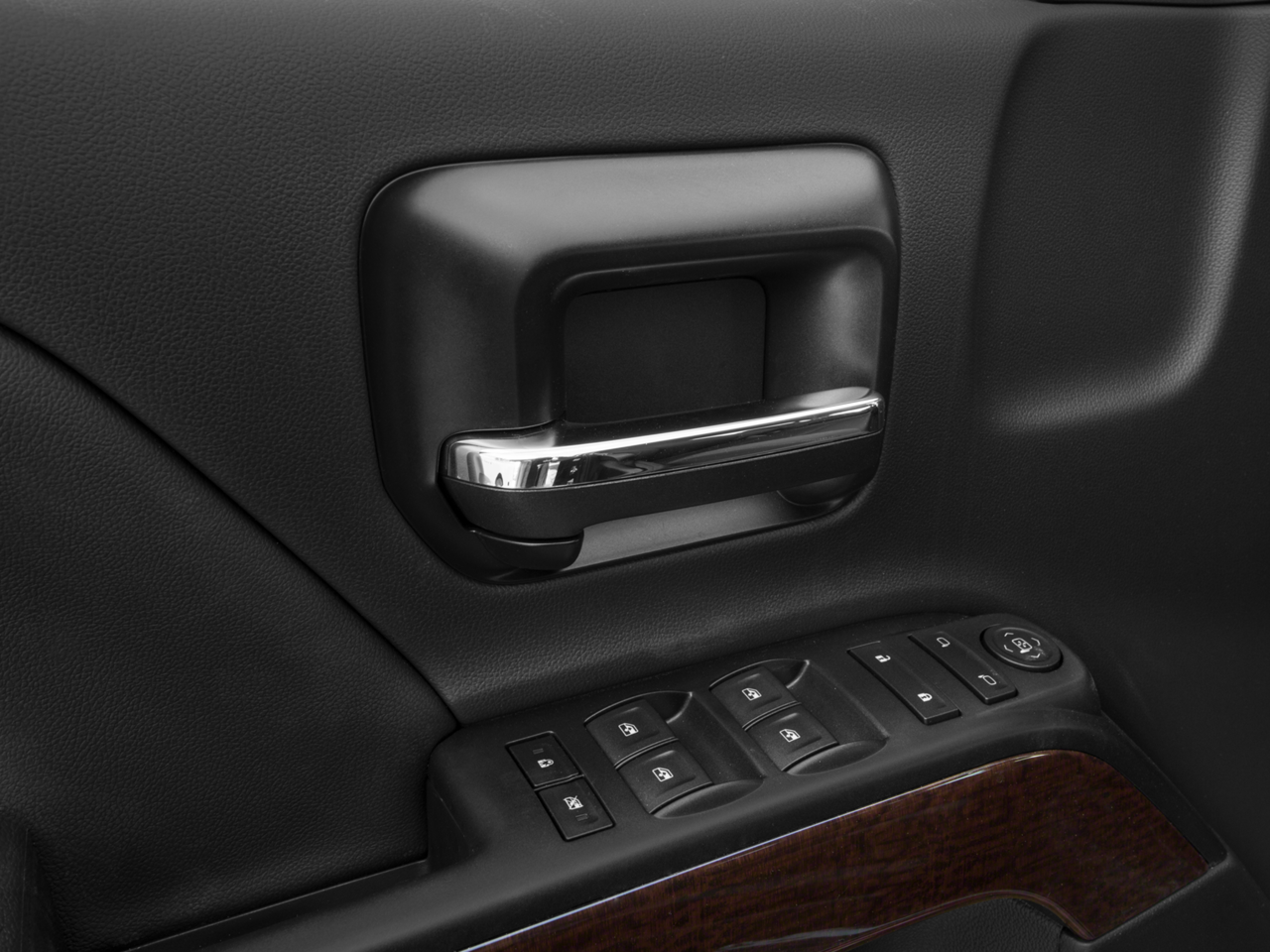

• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Pedals, power-adjustable for Crew Cab and Double Cab models
• Cruise control, steering wheel-mounted
• Universal Home Remote (Not included when (TRW) provision for cab roof-mounted lamp or (VYU) Snow Plow Prep Package are ordered.)
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control Only available on Crew Cab and Double Cab models.
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars
• OnStar Guidance Plan for 6 months including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right front passenger, single stage (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera with dynamic guide lines (Not included when (ZW9) pickup box delete is ordered.)

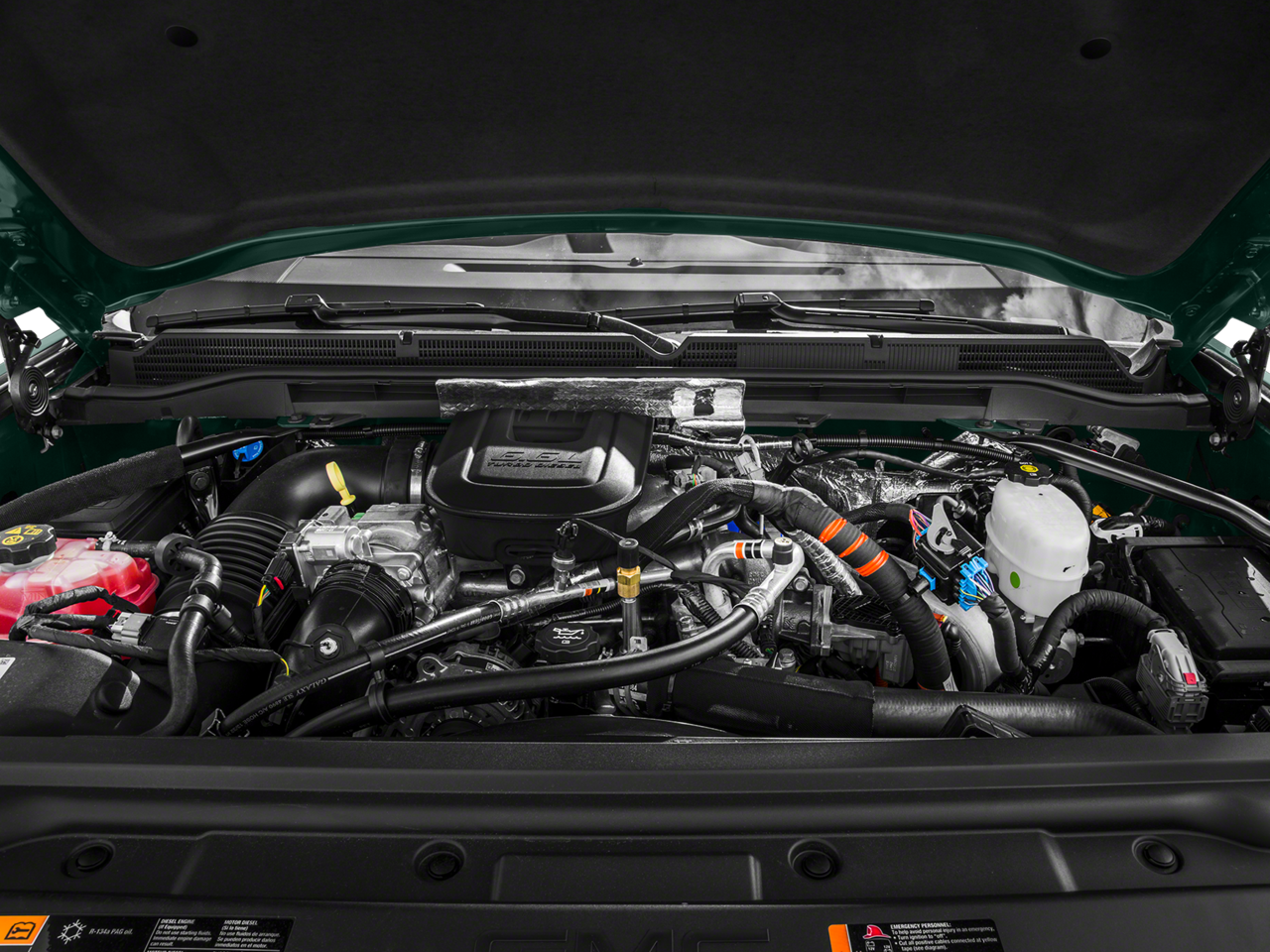

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.

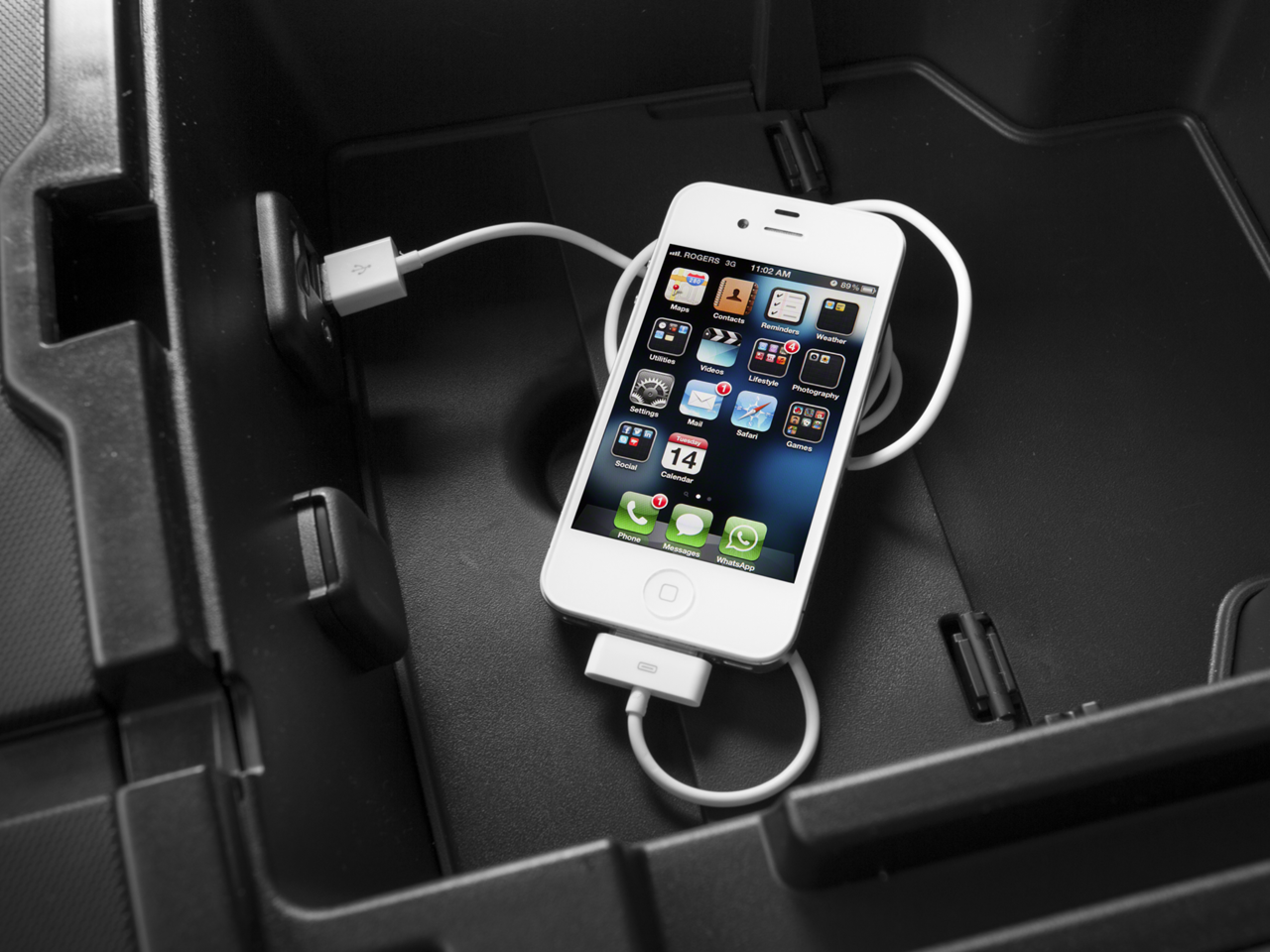

• WIRELESS CHARGING
• SEATS FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS. Includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control 2-position driver memory adjustable head restraints (D07) floor console storage pockets and (K4C) wireless charging.
• COCOA/DUNE PERFORATED LEATHER-APPOINTED SEAT TRIM
• LICENSE PLATE KIT FRONT Note: (VK3) deletes center lower bumper filler panel.
• BRAKES 4-WHEEL ANTILOCK 4-WHEEL DISC with DuraLife brake rotors
• WHEELS 17 (43.2 CM) POLISHED ALUMINUM includes 17 steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• AIR BAGS SINGLE-STAGE FRONTAL AND THORAX SIDE-IMPACT DRIVER AND FRONT PASSENGER AND HEAD CURTAIN SIDE-IMPACT FRONT AND REAR OUTBOARD SEATING POSITIONS
• ENGINE DURAMAX 6.6L TURBO DIESEL V8 B20-DIESEL COMPATIBLE (397 hp [296.0 kW] @ 3000 rpm 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.
• DURAMAX PLUS PACKAGE includes (LML) Duramax 6.6L Turbo Diesel V8 engine (MW7) Allison 1000 6-speed automatic transmission (UQA) Bose premium audio system (UD5) front and rear park assist and (IO6) 8 Diagonal Color Touch Screen Navigation with IntelliLink
• LAMPS SMOKED AMBER ROOF MARKER
• FRONT AND REAR PARK ASSIST ULTRASONIC
• TIRES LT235/80R17E ALL-TERRAIN
• SEATING HEATED AND VENTED PERFORATED LEATHER-APPOINTED FRONT BUCKET
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• ENGINE BLOCK HEATER

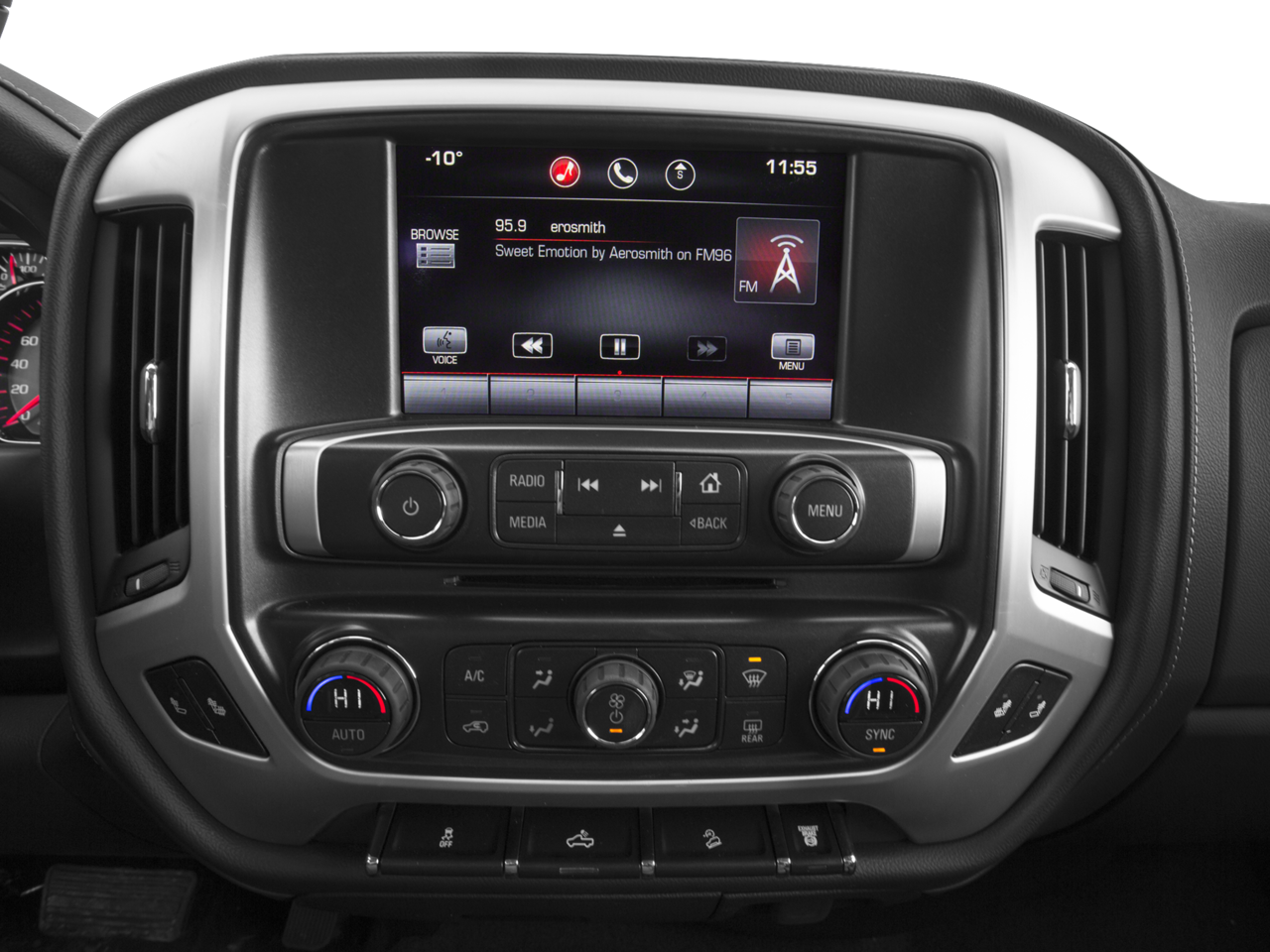

• AUDIO SYSTEM 8 DIAGONAL COLOR TOUCH SCREEN NAVIGATION WITH INTELLILINK AM/FM/SIRIUSXM HD RADIO with USB ports auxiliary jack Bluetooth® streaming audio for music and most phones advanced phone integration featuring Apple CarPlay Pandora Internet radio and voice-activated technology for radio and phone
• PICKUP BOX (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• TIRE SPARE LT235/80R17E ALL-TERRAIN
• WHEEL 17 X 6.5 (43.2 CM X 16.5 CM) FULL-SIZE STEEL SPARE. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.
• SUMMIT WHITE
• PAINT SOLID
• LPO ALL-WEATHER FLOOR MATS front and rear on Crew Cab and Double Cab; front only on Regular Cab (dealer-installed)
• UNDERBODY SHIELD FRAME-MOUNTED SHIELDS includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case
• GVWR 13 025 LBS. (5908 KG) WITH DUAL REAR WHEELS
• EXHAUST BRAKE
• STEERING WHEEL HEATED LEATHER WRAPPED with audio and cruise controls
• 4SA PREFERRED EQUIPMENT GROUP includes standard equipment

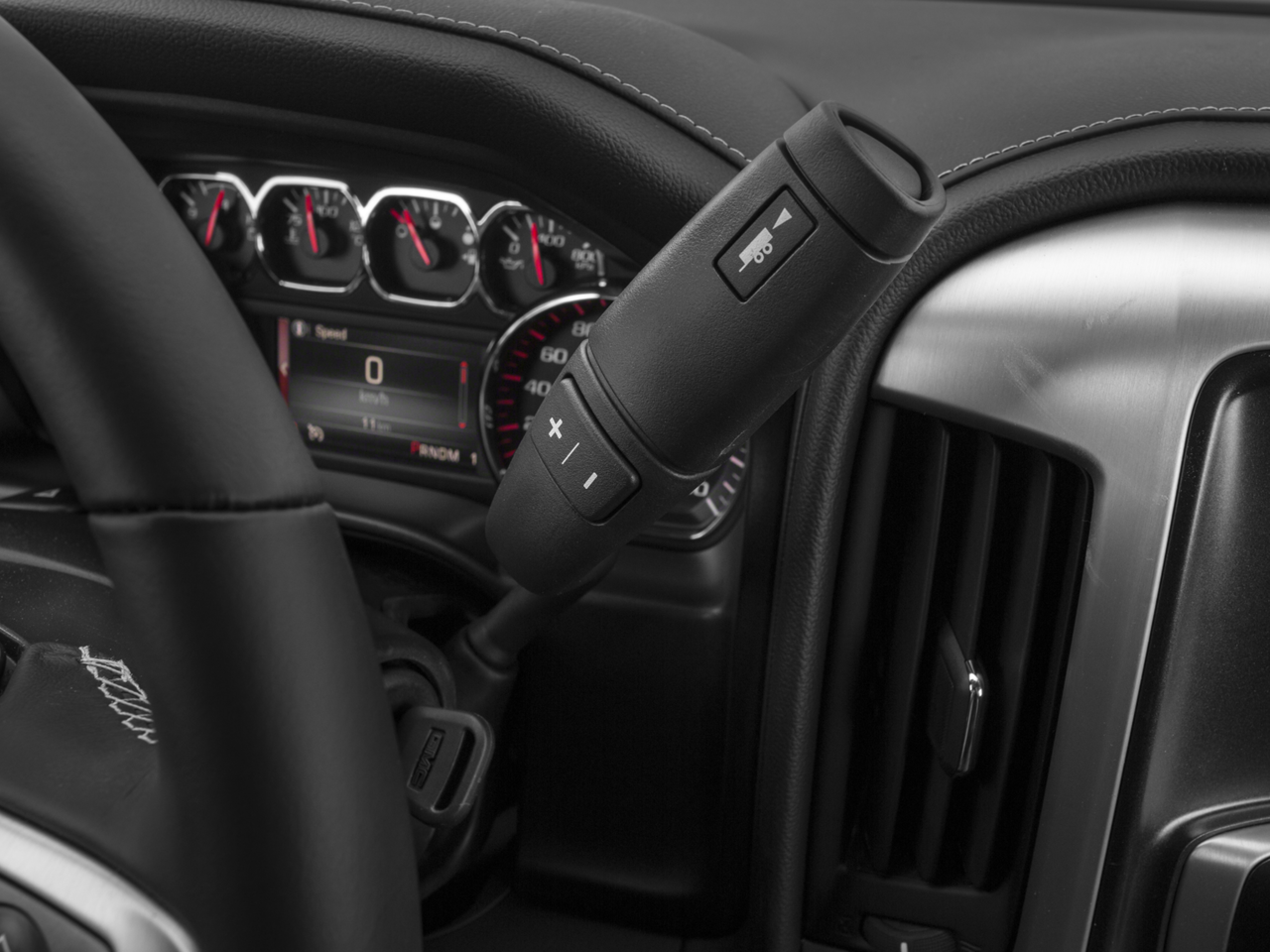

• TRANSMISSION ALLISON 1000 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive electronic engine grade braking and tow/haul mode
• DRIVER ALERT PACKAGE includes (UFL) Lane Departure Warning (UEU) Forward Collision Alert Safety Alert Seat and (UD5) Front and Rear Park Assist (Includes (UVD) heated steering wheel.
• LPO ASSIST STEPS CHROMED TUBULAR 6 RECTANGULAR (dealer-installed)
• SWITCH HIGH IDLE

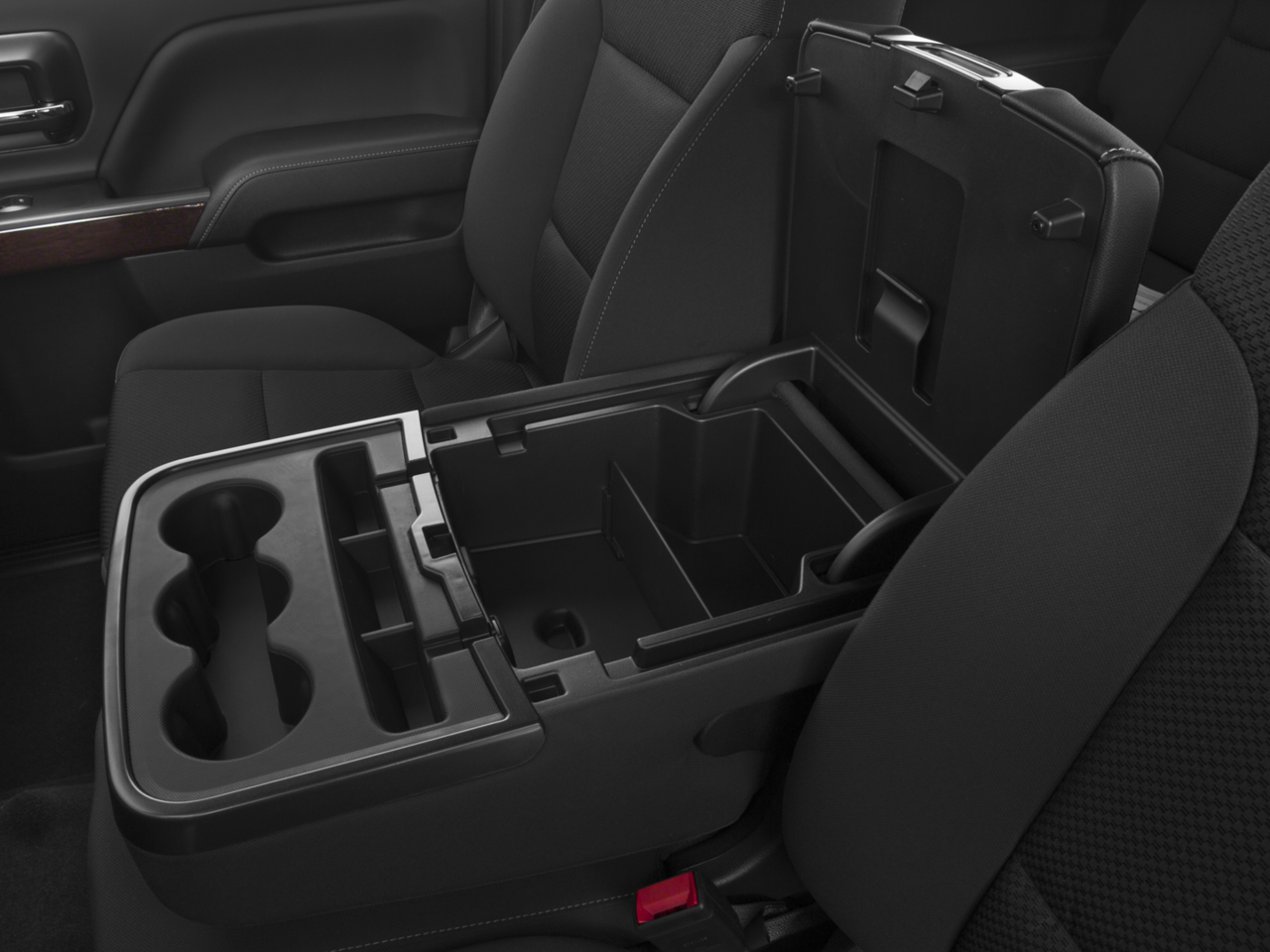

• CONSOLE FLOOR MOUNTED RECONFIGURABLE with cup holders cell phone storage power cord management hanging file holder capability and (K4C) wireless charging
• LANE DEPARTURE WARNING
• REAR AXLE 3.73 RATIO
• LPO REAR UNDERSEAT STORAGE COMPOSITE STORAGE BIN (dealer-installed)
• FORWARD COLLISION ALERT
• BOSE SOUND WITH 6 SPEAKER SYSTEM (7 speaker system including subwoofer when ordered with bucket seats).
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• HID headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• AM/FM Stereo
• Satellite Radio
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• HD Radio
• Requires Subscription
• CD Player
• Satellite Radio
• Requires Subscription
• HD Radio
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Telematics
• WiFi Hotspot
• Requires Subscription
• Leather Seats
• Heated Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Adjustable Pedals
• Cruise Control
• Universal Garage Door Opener
• Security System
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Telematics
• Navigation from Telematics
• Requires Subscription
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Back-Up Camera

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 11000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1370
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16900
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4225
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3425
• Maximum Trailering Capacity (lbs): 22600
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 56.1
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 167.70
• Length, Overall w/o rear bumper (in): 258.4
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.07
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 55.24
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.41
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.76
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 76.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
