• GVWR, 5300 lbs. (2404 kg)
• Differential, automatic locking rear
• Rear wheel drive
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Alternator, 125 amps
• Pickup box, Fleetside, all-welded steel with double wall construction and corrosion protection with 4 cargo tie-downs
• Recovery hooks, 2 front, frame-mounted
• Suspension Package, Off-Road
• Suspension, front, torsion bar and stabilizer bar
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs
• Steering, power, rack-and-pinion
• Brakes, 4-wheel antilock, front disc/rear drum

• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) chrome clad (Upgradeable to (P31) Wheels, 18 x 7.5 chrome aluminum.)
• Tires, P265/70R17 on-/off-road, blackwall (Upgradeable to (QXN) P265/65R18-112S on-/off-road, blackwall tires, when (P31) 18 x 7.5 (45.7cm x 19.1 cm) chrome aluminum wheels are ordered.)
• Tire, spare P235/75R16 all-season, blackwall
• Bumpers, front chrome upper with Dark Gray lower, rear chrome with a Dark Smoke Gray pad.
• Air dam, Ebony
• Moldings, color-keyed bodyside
• Wheel flares, front and rear, large, body-color
• Grille, color-keyed surround with chrome bar
• Fog lamps, front, halogen
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield, driver-and front passenger-side glass)
• Window, rear-sliding
• Mirrors, outside power-adjustable, manual-folding, body-color
• Wipers, front intermittent with washers
• Bedliner
• Tailgate, 2-position

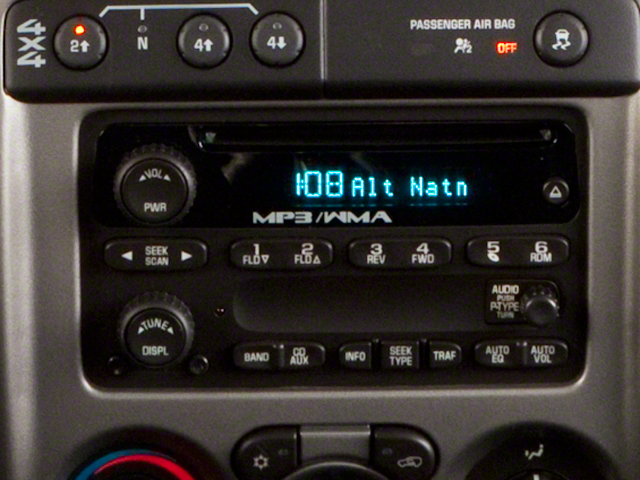

• Audio system, AM/FM stereo with CD/MP3 player, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), automatic volume and TheftLock
• SiriusXM Satellite Radio is standard on nearly all 2012 GM models. Enjoy a 3-month trial to the 'XM Select' package, with over 170 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. And now add premium channels to your trial at no-cost. Welcome to the world of satellite radio. (Requires a subscription sold separately by SiriusXM after the trial period. If you decide to continue your service at the end of your subscription, service will automatically renew and bill, at the rates in effect at the time of renewal, until you call SiriusXM at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.com. Available only to those at least 18 and older in the 48 contiguous USA and D.C.)
• Bluetooth® for Phone, personal cell phone connectivity to vehicle audio system (Deleted when (UE0) OnStar delete is ordered.)
• Audio system feature, uplevel speaker system

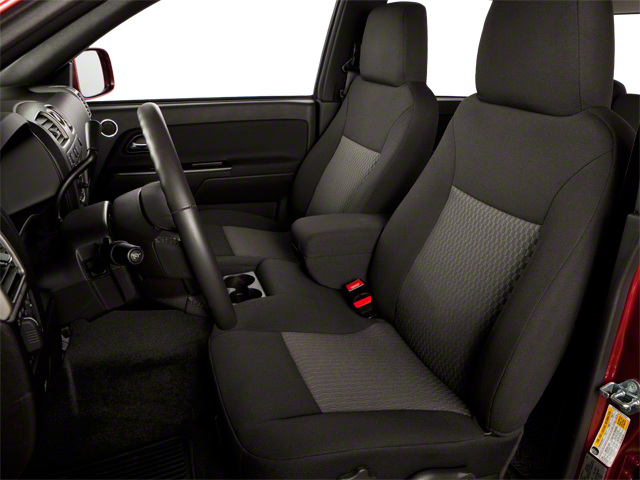

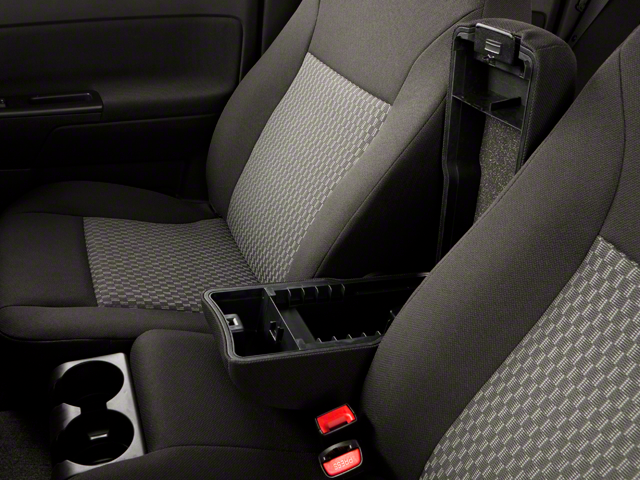

• Seats, front bucket with adjustable (up/down) outboard head restraints and map pockets on seatbacks

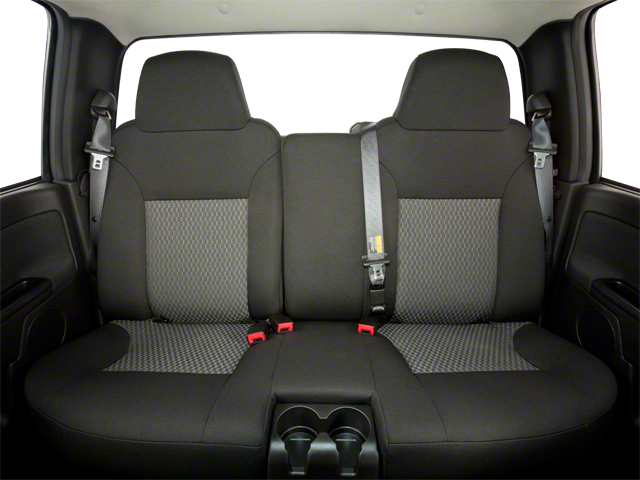

• Seats, second row 60/40 split-bench, flat-folding
• Floor covering, Ebony carpeting
• Floor mats, rubberized-vinyl front
• Floor mats, rubberized-vinyl rear (Requires (B30) Ebony carpeted floor covering.)

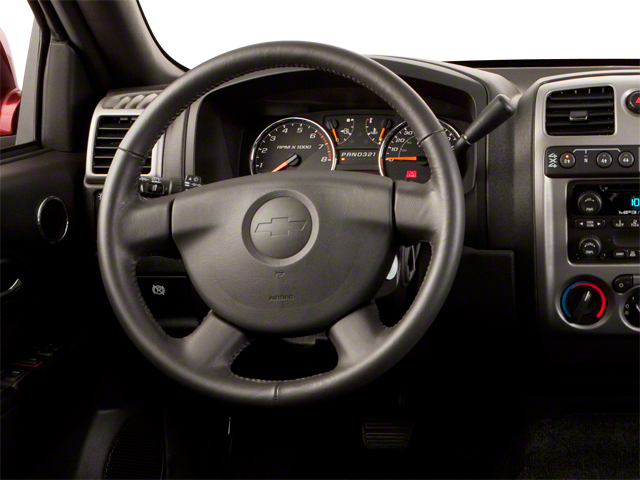

• Steering wheel, leather-wrapped
• Steering column, Tilt-Wheel
• Theft-deterrent system, vehicle, PASSlock
• Stolen Vehicle Assistance (Deleted when (UE0) OnStar delete is ordered.)
• Warning tones headlamp on, key-in-ignition, driver safety belt unfasten and turn signal on
• Cruise control
• OnStar Turn-by-Turn Navigation (Deleted when (UE0) OnStar delete is ordered.)
• Air conditioning, single-zone manual
• Power outlets, 2 auxiliary with covers, 12-volt
• Accents, interior Titanium Nova Silver-colored air outlets and center control stack with chrome door handle bezels, uplevel instrument cluster bezel, front upper door speaker bezel and air vent sliders
• Door trim integral armrests and driver- and front passenger-side map pockets with cloth inserts
• Mirror, inside rearview auto-dimming with compass and outside temperature display
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror
• Assist handles, front passenger and rear outboard
• Coat hooks, driver- and passenger-side rear

• StabiliTrak, stability control system with Traction Control
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (A note about child safety: Always use safety belts and the correct child restraint for your child's age and size. Even with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See your vehicle Owner's Handbook for more information.)
• Air bags, head curtain side-impact, driver and right-front passenger, first and second row outboard passengers (Head Curtain Side Air Bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraint for your child's age and size, even with air bags. Children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. See the Owner's Manual for more safety information.)
• Automatic Crash Response (Deleted when (UE0) OnStar delete is ordered.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Emergency Services, Crisis Assist, Stolen Vehicle Assistance, Remote Door Unlock, Turn-by-Turn Navigation with OnStar eNav (where available), OnStar Vehicle Diagnostics, Roadside Assistance, Remote Horn and Lights, and Hands Free Calling (Visit onstar.com for details and system limitations.)
• Safety belts, 3-point, driver and right-front passenger, adjustable (center front position lap belt with bench seat only)
• Safety belts, 3-point, rear, all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor
• Door locks, child security rear

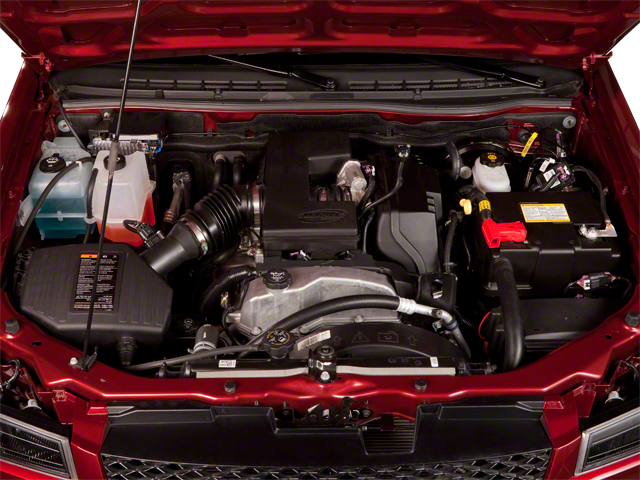

ENGINE, 3.7L DOHC 5-CYLINDER SFI

• (242 hp [180.4 kW] @ 5600 rpm)
• 242 lb-ft [326.7 N-m] @ 4600 rpm) (STD)

• LT PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• TRAILER HITCH WEIGHT DISTRIBUTION PLATFORM
• REAR AXLE 3.73 RATIO
• SEATS FRONT BUCKET with adjustable (up/down) outboard head restraints and map pockets on seatbacks (STD)
• WHEELS 4 - 17 X 7 (43.2 CM X 17.8 CM) CHROME CLAD (STD)
• VICTORY RED
• TRAILERING EQUIPMENT includes (VR4) trailer hitch (with weight distributing platform) and (UY7) 7-pin sealed trailer wiring connector
• LICENSE PLATE BRACKET FRONT
• TIRES P265/70R17 ON-/OFF-ROAD BLACKWALL (STD)
• LPO CHROME STAINLESS STEEL TUBULAR ASSIST STEPS with Gray diamond step pad
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED WITH OVERDRIVE (STD)
• AUDIO SYSTEM AM/FM STEREO with CD/MP3 player seek-and-scan digital clock auto-tone control Radio Data System (RDS) automatic volume and TheftLock (STD)
• TRAILER WIRING 7-PIN SEALED CONNECTOR
• ENGINE 3.7L DOHC 5-CYLINDER SFI (242 hp [180.4 kW] @ 5600 rpm) 242 lb-ft [326.7 N-m] @ 4600 rpm) (STD)
• GVWR 5300 LBS. (2404 KG)
• EBONY/LIGHT CASHMERE DELUXE CLOTH includes manual recliners with integral outboard head restraints
• Keyless Entry
• Power Door Locks
• Power Mirror(s)
• Power Windows
• Auto-Dimming Rearview Mirror
• Locking/Limited Slip Differential
• Rear Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Chrome Wheels
• Tires - Front On/Off Road
• Tires - Rear On/Off Road
• Conventional Spare Tire
• Fog Lamps
• Privacy Glass
• Sliding Rear Window
• Power Mirror(s)
• Intermittent Wipers
• Bed Liner
• AM/FM Stereo
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Bucket Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Floor Mats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Telematics
• Requires Subscription
• Cruise Control
• Telematics
• Navigation from Telematics
• Requires Subscription
• A/C
• Power Outlet
• Auto-Dimming Rearview Mirror
• Passenger Vanity Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Telematics
• Requires Subscription
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor
• Child Safety Locks

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2633
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 2048
• Curb Weight - Rear (lbs): 1680
• Gross Vehicle Weight Rating Cap (lbs): 5300
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 380
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2633
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2633
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QJP
• Rear Tire Order Code: QJP
• Spare Tire Order Code: ZNF
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Spare Tire Size: P235/75R16
• Front Tire Capacity (lbs): 1633
• Rear Tire Capacity (lbs): 1633
• Spare Tire Capacity (lbs): 1633
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7
• Rear Wheel Size (in): 17 x 7
• Spare Wheel Size (in): 16
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.4
• Steering Ratio (:1), At Lock: 3.2
• Turning Diameter - Curb to Curb (ft): 44.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: Inboard LH Frame Rail
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 207.1
• Width, Max w/o mirrors (in): 67.6
• Height, Overall (in): 65.2
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 137.3
• Cab to Axle (in): 22.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 31.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 7.7
• Ground Clearance, Rear (in): 7.7
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.1
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 37.0
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 39.3
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 57.1
• Second Hip Room (in): 52.9
• Summary

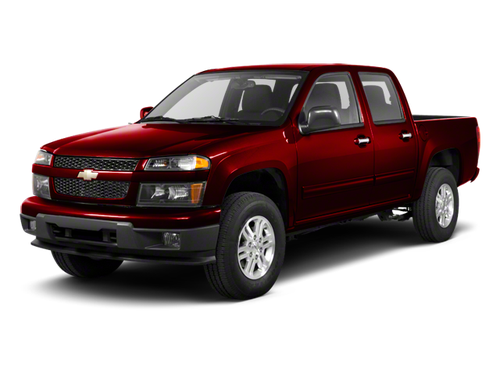

• Vehicle Name: Chevrolet Colorado
• Body Style: Crew Cab
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
